Times and places you will always remember.
The Neptunus 750F blends superior seakeeping with contemporary styling. This yacht was designed by Gregory C. Marshall, an award-winning naval architect.
At Neptunus, you will find a team that is excited about working with you to tailor your new Neptunus 750F to your lifestyle and your boating needs. With every new build, we work closely with you on the layout, flow, form and function of your new yacht.
Our customers develop a unique relationship with many of our employees during the design and construction of their yacht, and frequently comment on the warm reception they receive when working with the team at the Neptunus shipyard.
Exterior Gallery
Interior Gallery
Specifications
| LOA: | 78′ |
| Beam | 18’11” |
| Draft: | 5′ 3″ * |
| Dry Weight: | 115,000 lbs |
| Fuel: | 1,588 Gallons |
| Water: | 325 Gallons |
| Waste: | 160 Gallons |
| Engines: | Twin CAT C32 ACERT@1700HP each |
| Generator: | Twin 20kW Northern Lights |
| Maximum Speed: | 32 Knots* |
| Cruising Speed: | 26 Knots* |
Highlights
- Designed by Gregory C. Marshall
- Layouts for salon, dinette and galley are custom designed with you
- Available with either 3 or 4 staterooms
- Natural walnut woodwork throughout the yacht
- Custom flybridge hardtop, climate controlled bridge

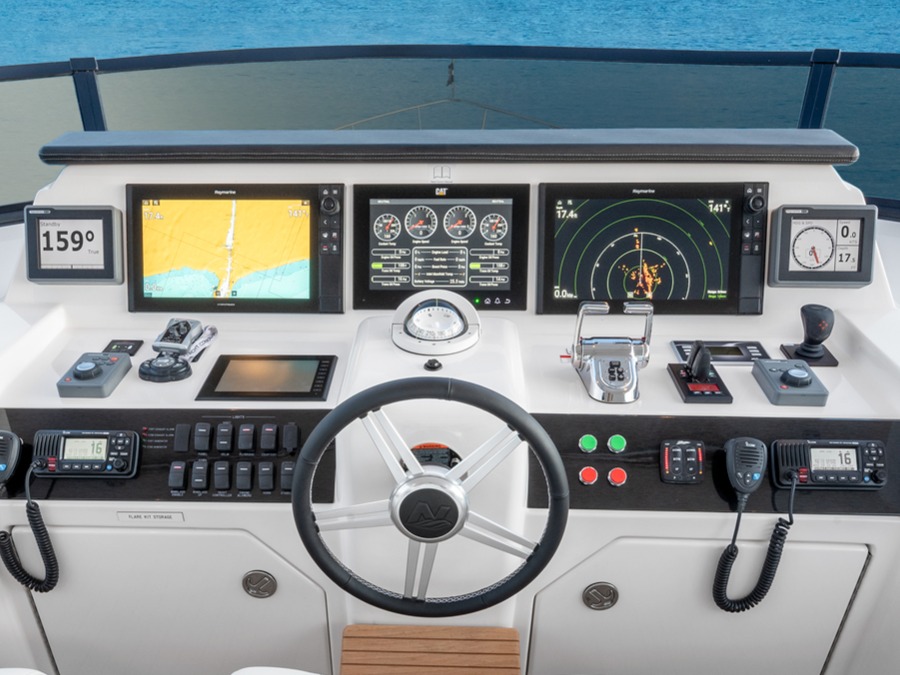

- Ergonomically designed center helm with three custom-made helm chairs
- Dual Raymarine 16″ Axiom Multifunction Displays with ClearCruise Augmented Reality
- Raymarine Cyclone Pro Radar with Doppler target tracking and CHIRP, 96 NM, 4′ open array
- 15HP proportional bow and stern thrusters
- Yacht Controller system with joystick and remote
- Teak decking on flybridge, aft deck and exterior stairs
- Fully appointed crew’s quarters
- Resin infused hull with custom carbon fibre hardtop delivers a stronger and lighter vessel
Major Equipment
Vessel Interior
Four stateroom, three head layout with crew’s quarters, or three stateroom, three head layout with crew
Four stateroom layout features on-deck master (5 steps down)
Custom layout designed with new owners in salon, galley and dinette areas
Natural walnut woodwork throughout the vessel
Hardwood flooring in salon, galley, dinette and hallways; carpet in staterooms
Choice of quartz or marble countertops
Stainless Steel appliances
Ceramic 4-burner stove top, 24″ oven, convection microwave, dishwasher in galley
Coffee center including Jura coffee maker with One-Touch Cappuccino

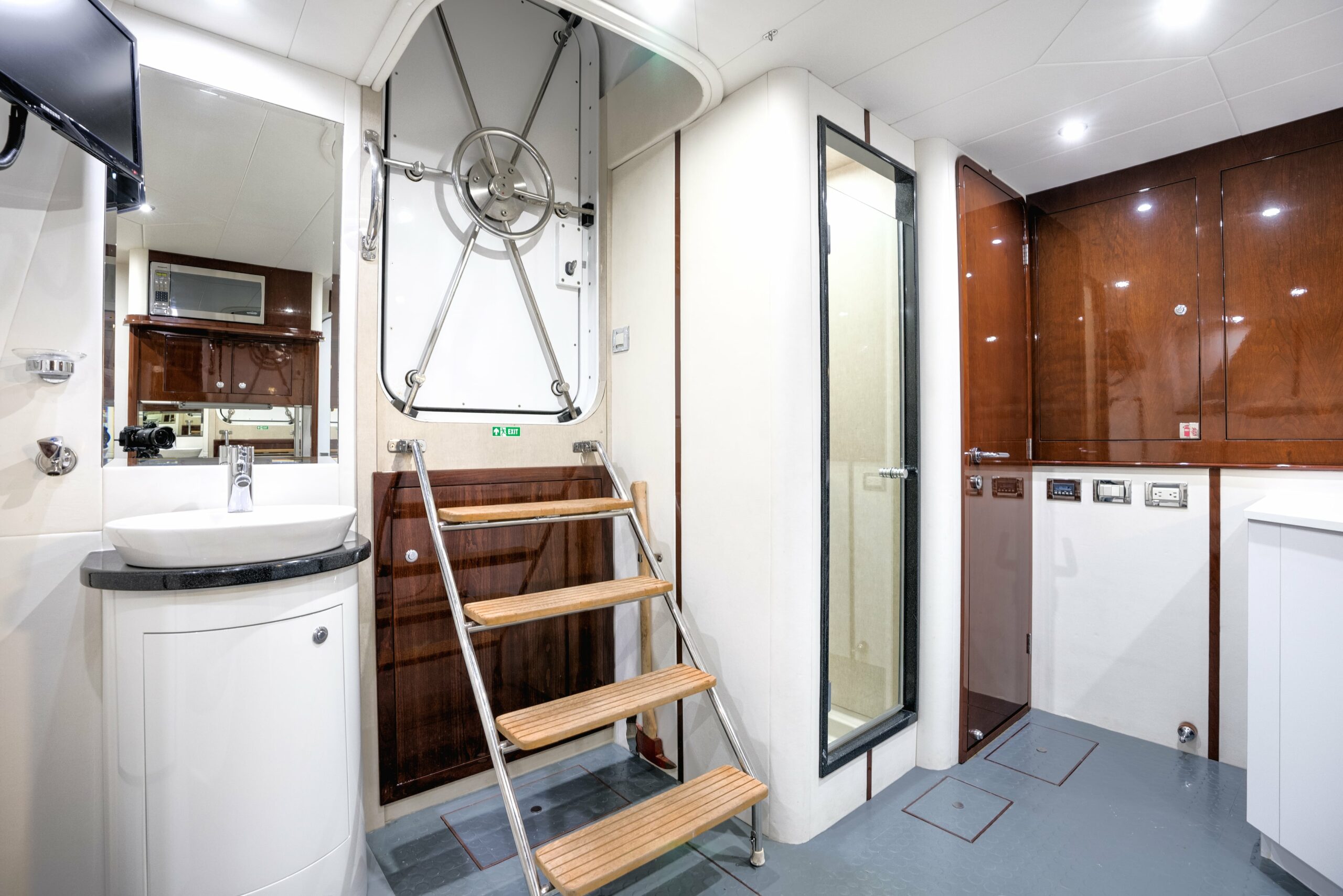

Crew’s quarters with berth, shower, toilet and sink
Designer Package
Custom interior doors with leather and stainless steel inlays
Leather design accents
Full leather interior seating for all seating surfaces
Flybridge
Custom carbon fibre hardtop with 3/4 enclosure and several flip-up panels
Three Pompanette Platinum Series helm chairs with flip-up bolsters
Custom dashboard with backlit acrylic switch panels
Dual 16,000 BTU A/C systems for flybridge area
U-shaped settee with quartz table
Traditional teak decking aft

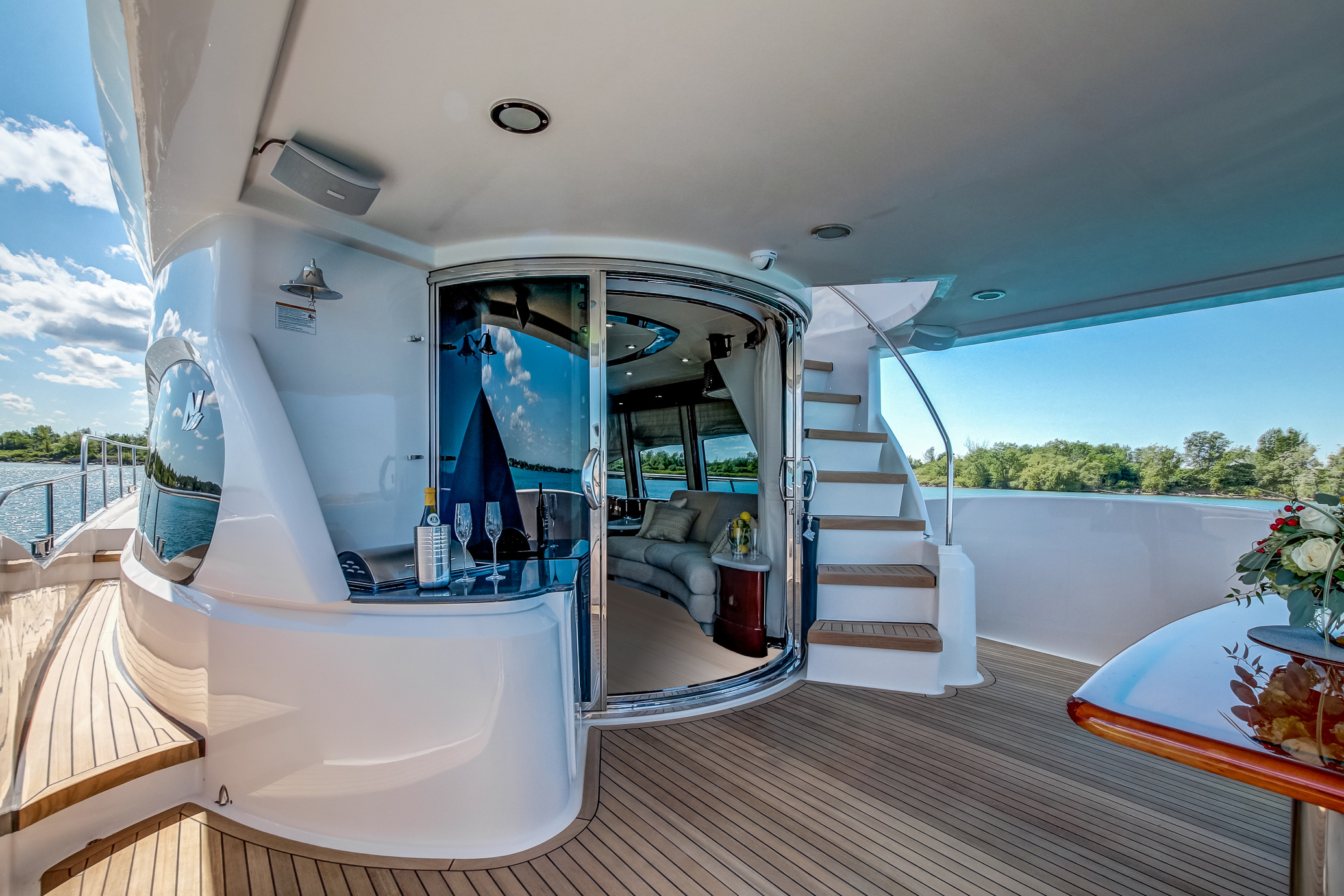

Exterior built-in staircase to flybridge
Mechanical and Deck Equipment
Twin CAT C-32 ACERT Engines, 1700 HP each
Twin 20kW Northern Lights generators with sound enclosures
15 HP proportional bow thruster (Side-Power)
15 HP proportional stern thruster (Side-Power)
Bow and stern thrusters feature 5-stage “dock hold position”
Yacht Controller system with joystick and remote control
Naiad electric stabilizer system
Battery charger for house system
Battery charger for engine start and thruster system
LED courtesy lights for all steps/risers
Dual ASEA Marine Shore Power Isolation Transformers w/Auto Boost
Dual Inverter System for seamless power transfer (Generator-Shore Power)
Chilled Water Air Conditioning System – dual 48,000 BTU VARC units with underwater discharge
High speed fuel fills for both fuel tanks on port, and also on starboard
Traditional teak decking on cockpit, flybridge, and exterior steps
High Gloss mahogany table for cockpit with stainless steel pedestals
Heavy duty stainless steel railings
Maxwell 3500 electric windlass with 160′ galvanized chain
110lb. Stainless steel anchor (Delta)
Eight heavy duty mooring cleats, two cross-tie cleats
Air horn, dual trumpet, by KahlenBerg

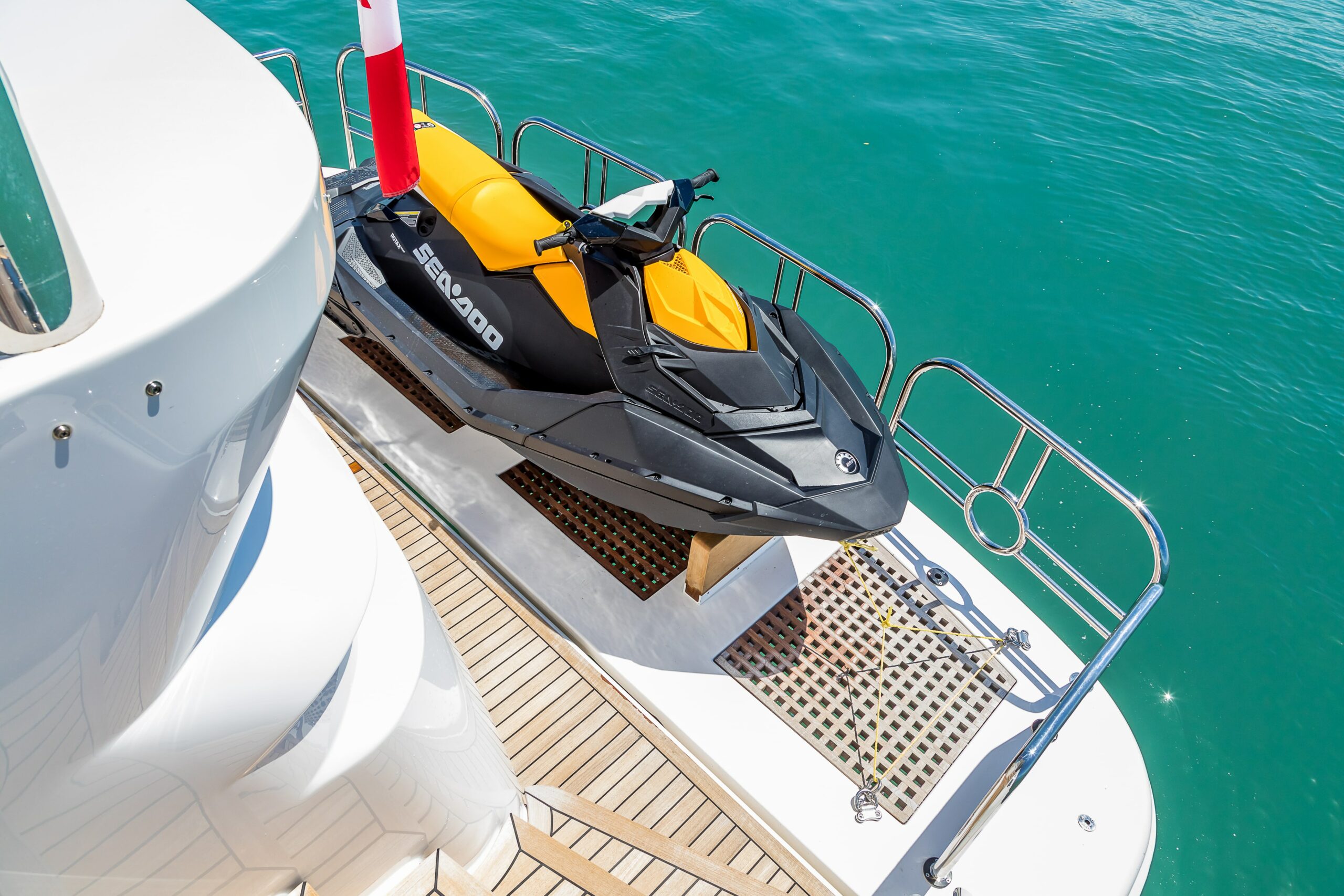

Carbon fiber hydraulic swim platform with teak, rated for 850 lb. dinghy
Center transom door for entry to crew cabin
Dual 24V water pressure pumps with accumulator
Dual Racor fuel filter system with vacuum gauges
Six bilge pumps with high water alarms, three with counters
Stainless steel propeller shafts with maintenance free, water-lubricated cutlass bearings
Black windshield netting (front only)
5 bladed Nibral propellers
Oil change system for engines, transmissions and generator
Dual 50 Amp shore power connections, two Cablemasters with 75′ of shorepower cable each
Three underwater lights
Five layers of Interlux 2000 and two layers of Interlux CSC anti-fouling bottom paint
Navigation Electronics (Flybridge Helm)
Dual Raymarine 16″ Axiom Multifunction Displays with ClearCruise Augmented Reality
Raymarine Cyclone Pro Radar with Doppler target tracking and CHIRP, 96 NM, 4′ open array
Raymarine I70S 4″ Multifunction Display for depth/speed and wind direction/speed
Raymarine Evolution Series Autopilot with remote
Raymarine Satellite TV Antenna System 45 cm (wired for 4 customer-supplied receivers)
Cockpit camera (1) and engine room cameras (2) linked to displays
RayMarine, Class B AIS receiver
Dual RayMarine RS150 GPS receivers
RayMarine weather channel receiver
Dual Icom M424g VHF
Icom M424g VHF in crew’s quarters
Entertainment Systems
48″ HD LED TV in salon
36″ HD LED TV in master stateroom
24″ HD LED TV in forward stateroom
24″ HD LED TV in guest stateroom
Sony Sound Bar with surround sound in salon (Bluetooth, NFC)
Sony Subwoofer in salon
Bose Wave system for master and all guest staterooms
Fusion stereo system on flybridge with remote control in cockpit
Four JL Audio outdoor speakers for flybridge
Two JL Audio outdoor speakers for cockpit
24″ HD LED TV in crew cabin
Off-Air HDTV antenna inside RayMarine Empty Dome
LAYOUTS
